Re-stacker

product description

This machine is used to re-stack boxes (75x50cm), meanwhile you can remove foam.

Capacity:
• ± 400 boxes per hour.

Process:
• This re-stacker is suited for boxes of 75x50cm, it can handle 1 layer (4 boxes) at a time.
• The clamp works pneumatically, it clamps four boxes on the side.

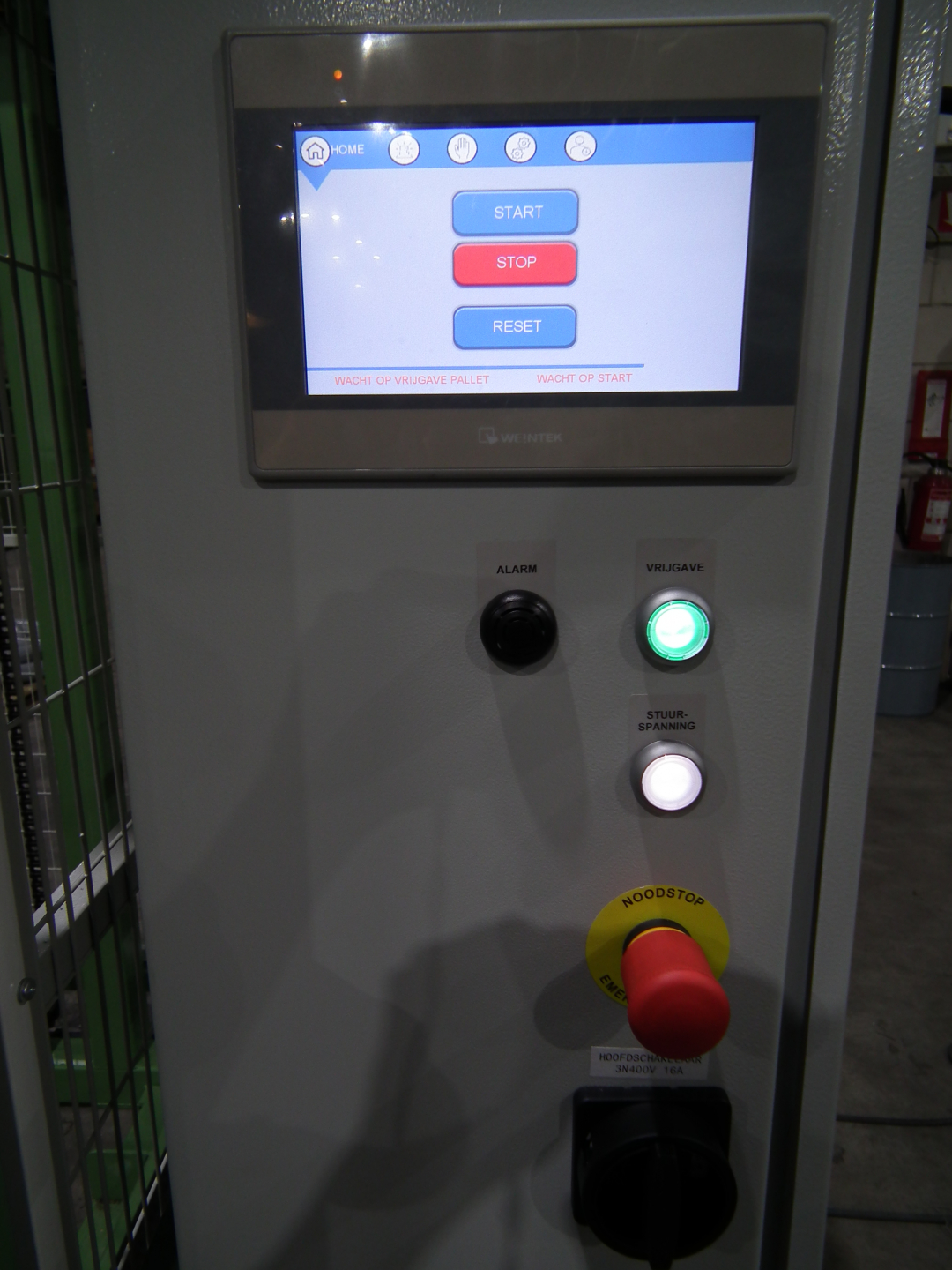

• The stacking height is adjustable and can be entered in the control cabinet, max. 12 boxes heigh.
• On the right side a pallet wih boxes is placed, on the left side a empty pallet must be placed.
• After each stroke foam can be removed from each layer.
• The machine will wait after each stroke on the left top side, every stroke needs to be started manually by pressing a button on the side of the machine.
• The machine is secured with a light screen, if this screen is interrupted while the machine is working, the machine will stop.
• When the set stacking height is reached, new pallets must be placed and the process starts all over again.
• This machine must be connected to an air compressor.


Common:
• Steel part of the machine are painted in RAL 6011 colour, which is a light green colour.
